IDS-CLAS Compact S1
The IDS-CLAS Compact S1 is a fourth-generation laboratory automation platform designed to deliver high operational efficiency within a compact footprint.
Engineered for hospital core laboratories, independent clinical laboratories, and specialty diagnostic laboratories, the Compact S1 provides scalable automation for laboratories where space is limited but testing demand continues to grow.
Laboratories can begin with a lean workcell configuration and expand progressively into Total Laboratory Automation (TLA) as volumes increase, with minimal disruption to your workflow.
Product availability, features, and services may vary by region and are subject to change without prior notice. For further information, please contact our sales representative.
1. Double-deck Architecture
Tracks operating on separate levels divide routine and re-run sample routing, helping to reduce congestion during peak testing periods.
2. Compact, Space-Efficient Design
3. Workcell to TLA
4. Ease of Adoption
Simplified installation and faster transition to operational automation.

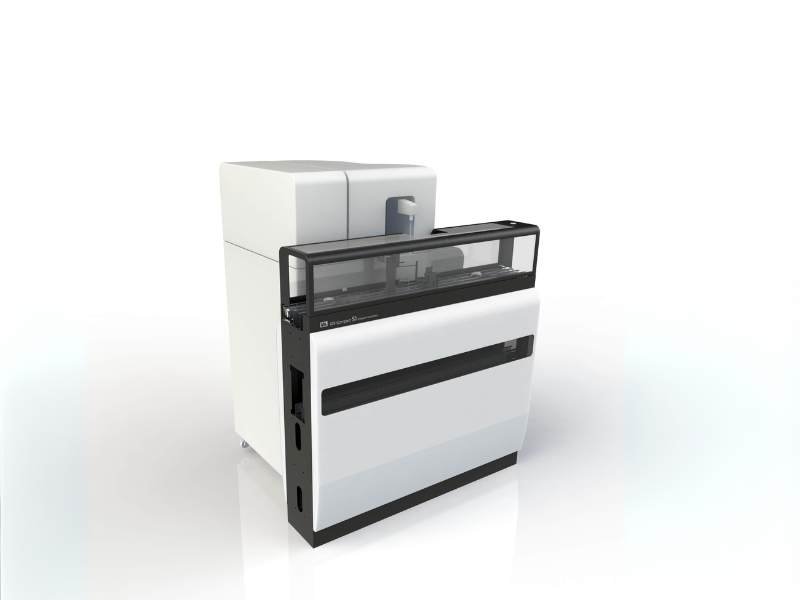

Bulk Loader
For Faster & Smarter Sample Loading
Designed to handle high volumes of incoming samples, the bulk loader accommodates samples to be loaded or poured through the opening as needed. The sample barcode is scanned to determine routing and confirm receipt in the laboratory LIS.
- Throughput : up to 600 samples/hours
- Track supports redundant modules

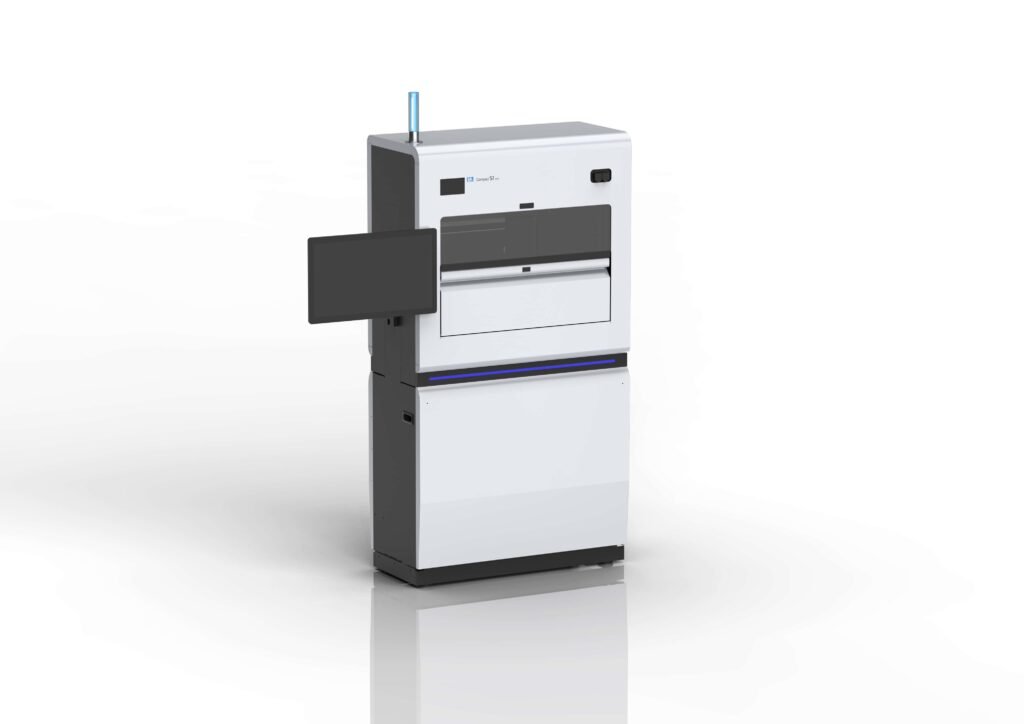

Inlet Module
For Rack-based Sample Loading & Routing
The Inlet is responsible for receiving and loading samples onto the track system while linking incoming sample information through barcode scanning.
Introduce STAT samples as needed without interrupting inlet operation.
- Loading Capacity: 200 Samples (4 x IDS 50-tube racks
- For more Walk-away time: Consider the 8-rack inlet with loading capacity of 400.

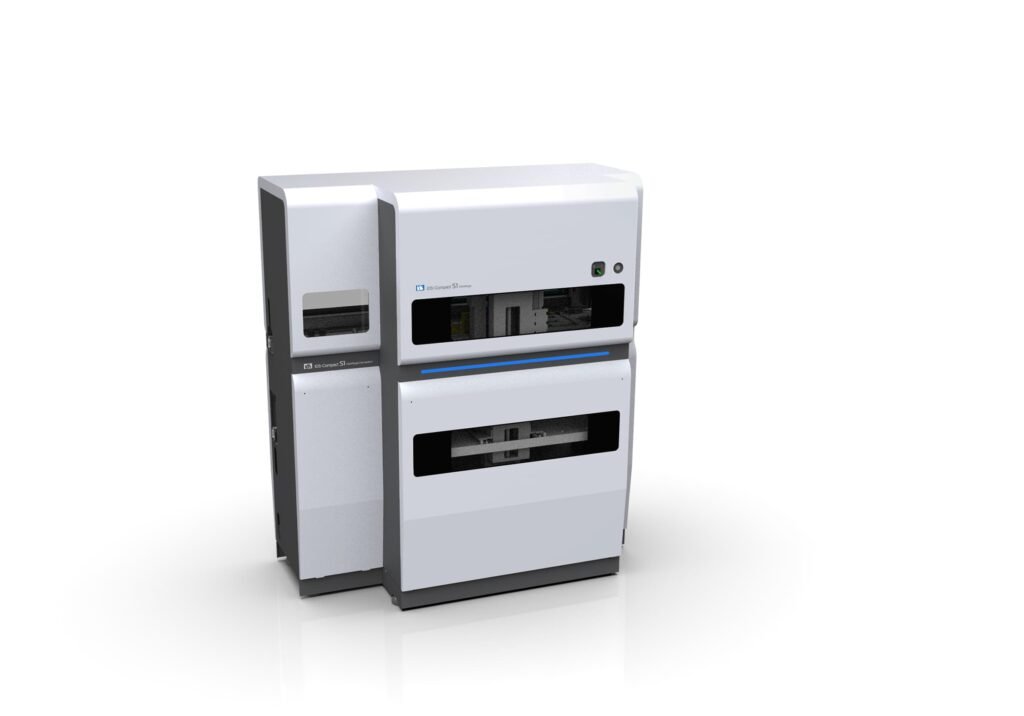

Centrifuge Module
Fast load and unload up to 40 samples per spin cycle with an auto-balancing feature to manage short turnaround time and removes centrifugation batching delays.
- The track supports redundant modules to manage increased sample volume.
- Available in ambient or refrigerated models

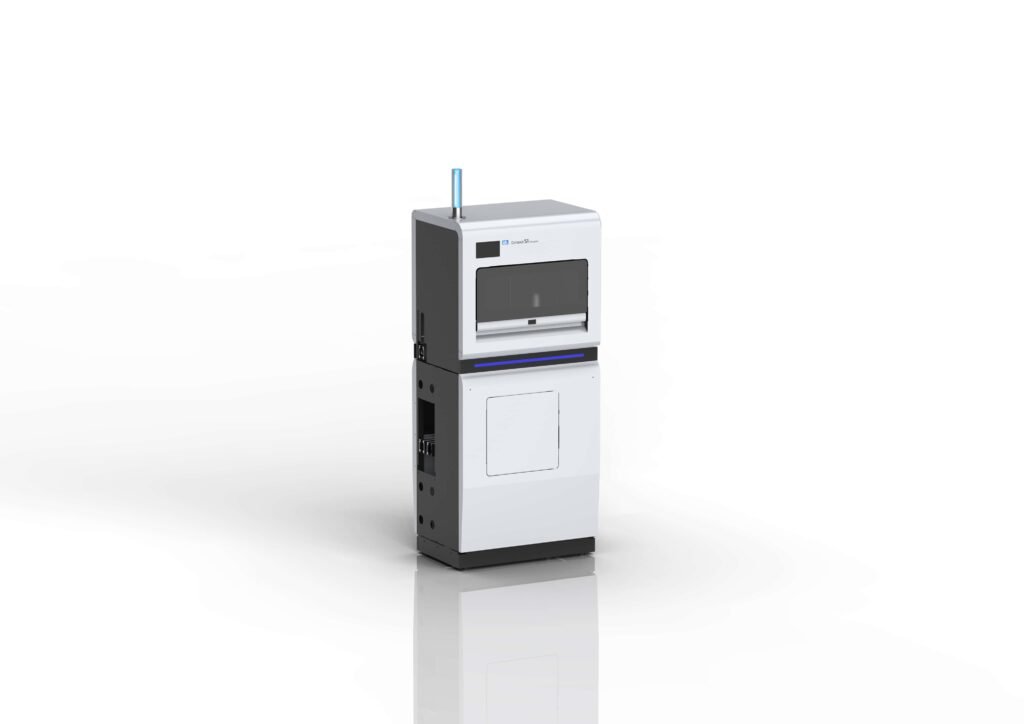

Decapper Module
Caps of sample tubes are removed by a rotational mechanism, which gets directly discarded into the internal bio-hazard container.
- Rubber stopper
- Plastic stoppers
- Twist/screw caps
Minimizing aerosol exposure and ensuring lab biosafety.
Analyzer Connections
IDS-CLAS Compact S1 support analyzer connections on both sides of the track system, significantly reducing sample travel time to the analyzers.
Rack or Tube-builder Connections
IDS can develop appropriate automated transfer arms designed to unload samples from sample tube carriers and place them into your laboratory analyzer racks.
Point-in-Space (Direct Track Sampling) Connections
For analyzers that are capable of direct-track sampling from primary tubes or aliquots while they remain on IDS sample transportation track.
IDS is able to manufacture direct track sampling connections that fits and facilitates efficient sample transfer depending on your laboratory analyzers type/make.
Recapper Module
Placing plastic caps on primary and secondary tubes before routing them to the Storage Module. Ensures secure sealing, preventing contamination and preserving sample integrity during storage or move around the lab.
Minimizing operator exposure for improved safety.
Outlet Module
Removes samples from Automation Line and loads them into outlet rack for further sorting or archiving.
The rack sorting configuration can be categorized to allow laboratories organize samples based on specific their needs. Automated sample retrieval from outlet for additional testing or re-runs.
- The track supports redundant modules

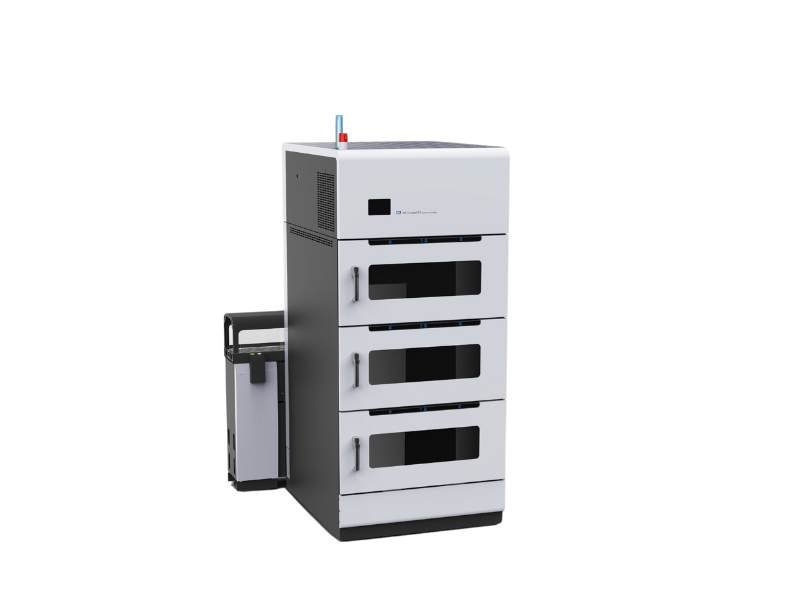

3K Storage Module
High-capacity sample storage for up to 3,060 sample tubes. Automated sample retrieval for additional testing or re-runs. Streamlining sample traceability and minimizing manual handling.
- Available in ambient or refrigerated models
- Optional automated sample disposal available
Bulk Loader
Multiple loose samples can be loaded or poured directly into the system. Each sample barcode is scanned to determine routing and confirm receipt in the laboratory LIS.
- Throughput : up to 600 samples/hours
- Track supports redundant modules
Inlet
For Rack-based Sample Loading & Routing
The inlet performs sample tube type characterization against test orders. Non-conforming samples are loaded back on the error rack.
Introduce STAT samples as needed without interrupting inlet operation.
- Loading Capacity: 200 Samples (4 x IDS 50-tube racks
- For more Walk-away time: Consider the 8-rack inlet with loading capacity of 400.
Centrifuge
Fast load and unload up to 40 samples per spin cycle with an auto-balancing feature to manage short turnaround time and removes centrifugation batching delays.
- The track supports redundant modules to manage increased sample volume.
- Available in ambient or refrigerated models
Decapper
Caps of sample tubes are removed by a rotational mechanism, which gets directly discarded into the internal bio-hazard container.
- Rubber stopper
- Plastic stoppers
- Twist/screw caps
Minimizing aerosol exposure and ensuring lab biosafety.
- De-caps primary tube.
- Prepares up to 4 different secondary tube types at same time.
- Prints bar-code label for secondary tubes.
- Aliquots primary samples to up to 15 secondary aliquot tubes.
- Alerts operators right away if samples are short of blood volume upon receipt.
- Samples sorted out into personality racks.

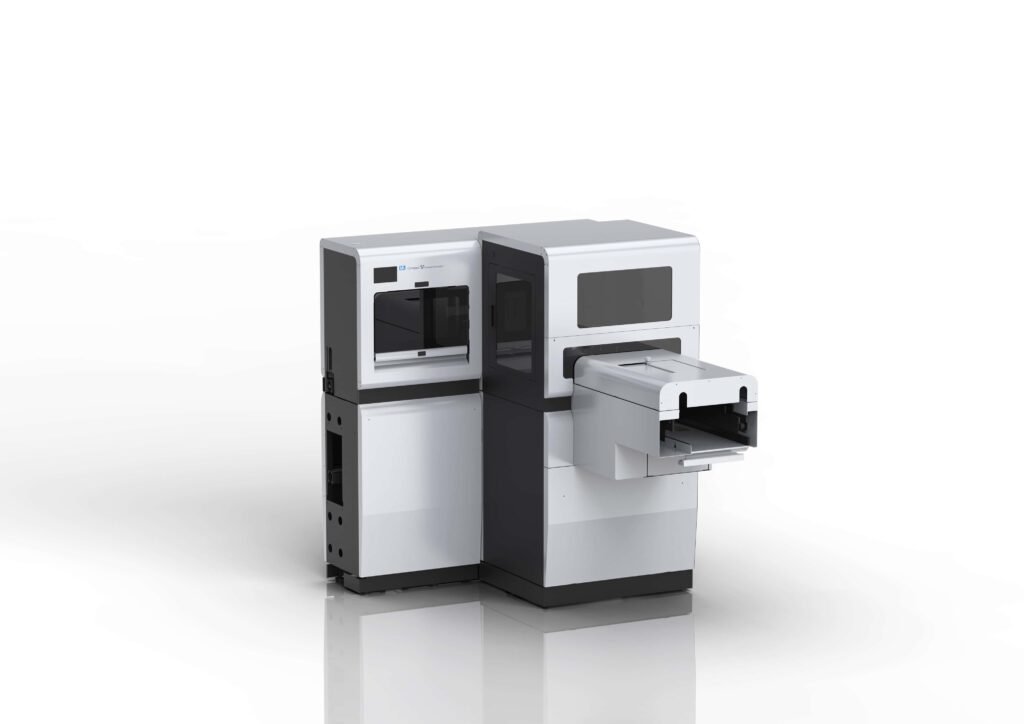

Rack Builder
Connection
Direct Sampling Connection
Analyzer Connection (s)
- Rack or Tube-builder Connections
- Point-in-Space (Direct Track Sampling) Connections
Recapper
Placing plastic caps on primary and secondary tubes before routing them to the Storage Module. Ensures secure sealing, preventing contamination and preserving sample integrity during storage or move around the lab.
Minimizing operator exposure for improved safety.
Inlet/Outlet
The module functions as both an inlet and outlet, allowing operators to introduce samples into the system and remove processed samples from the automation track into outlet racks.
Rack sorting can be configured based on laboratory workflow requirements. The outlet can also operate as an inlet, enabling sample retrieval for additional testing, repeat analysis, or re-runs.
- The track supports redundant modules
- 4-Rack outlet with a walkaway time of 200 samples (4 x IDS 50-tube racks).
3K Sample Storage
- Available in ambient or refrigerated models
- Optional automated sample disposal available
The images above are for illustrative purpose only. Actual product specifications and how it look may differ.

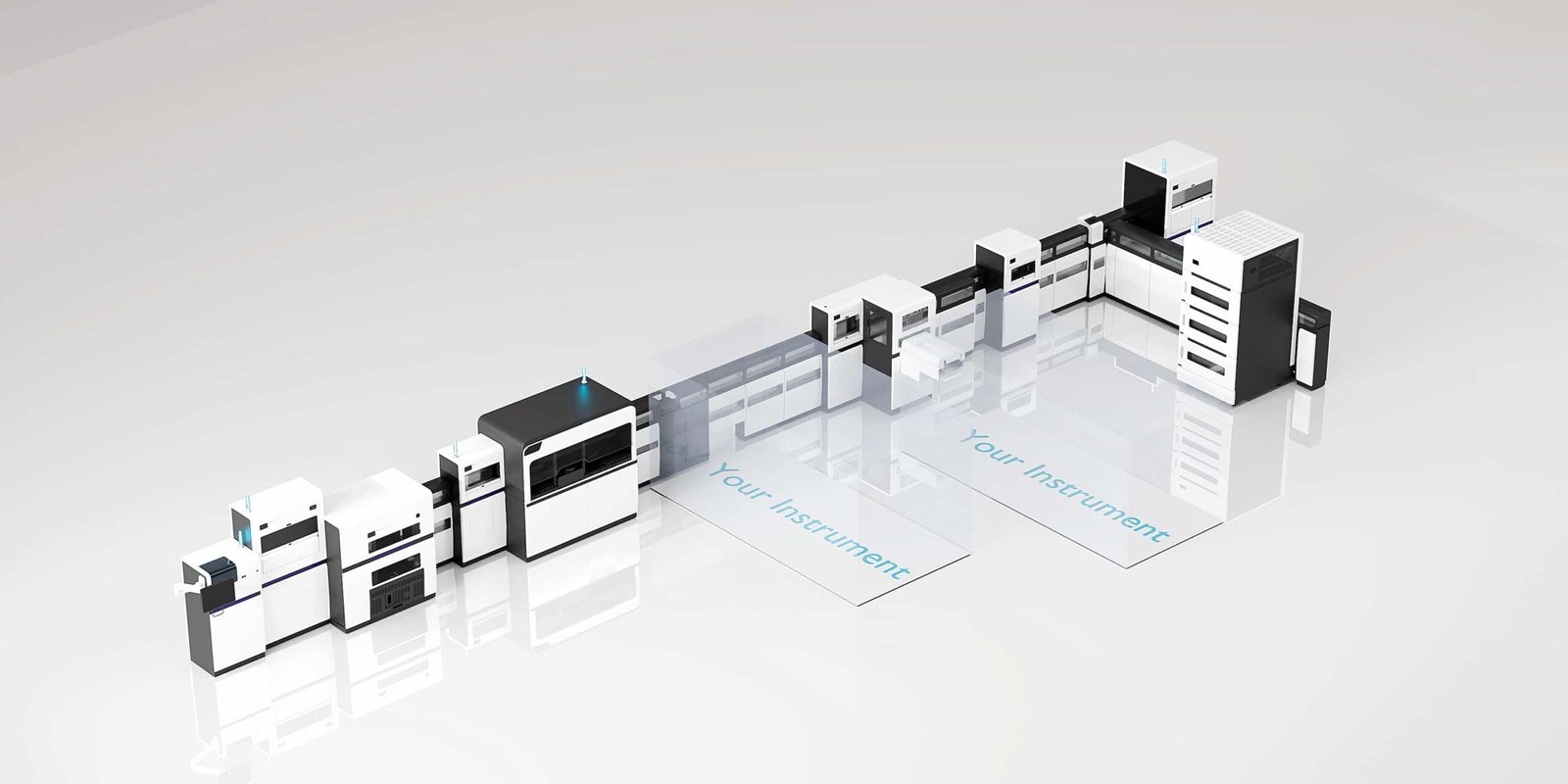

The TLA System includes but also is not limited to the following modules seen, which are all connected via IDS connection track.
Open Automation That Grows With Your Laboratory
We develop clinical laboratory automation that adapts to the operational needs and constraints of modern laboratories.
Built on decades of engineering and laboratory expertise, our systems are developed in close collaboration with laboratories and IVD partners to integrate seamlessly with evolving testing demands and hospital workflows. This user-centric approach supports operational efficiency, optimized turnaround times (TAT), and dependable patient care.
IDS designs and manufactures both standard and fully customized modular track systems, standing behind every installation for the long term.

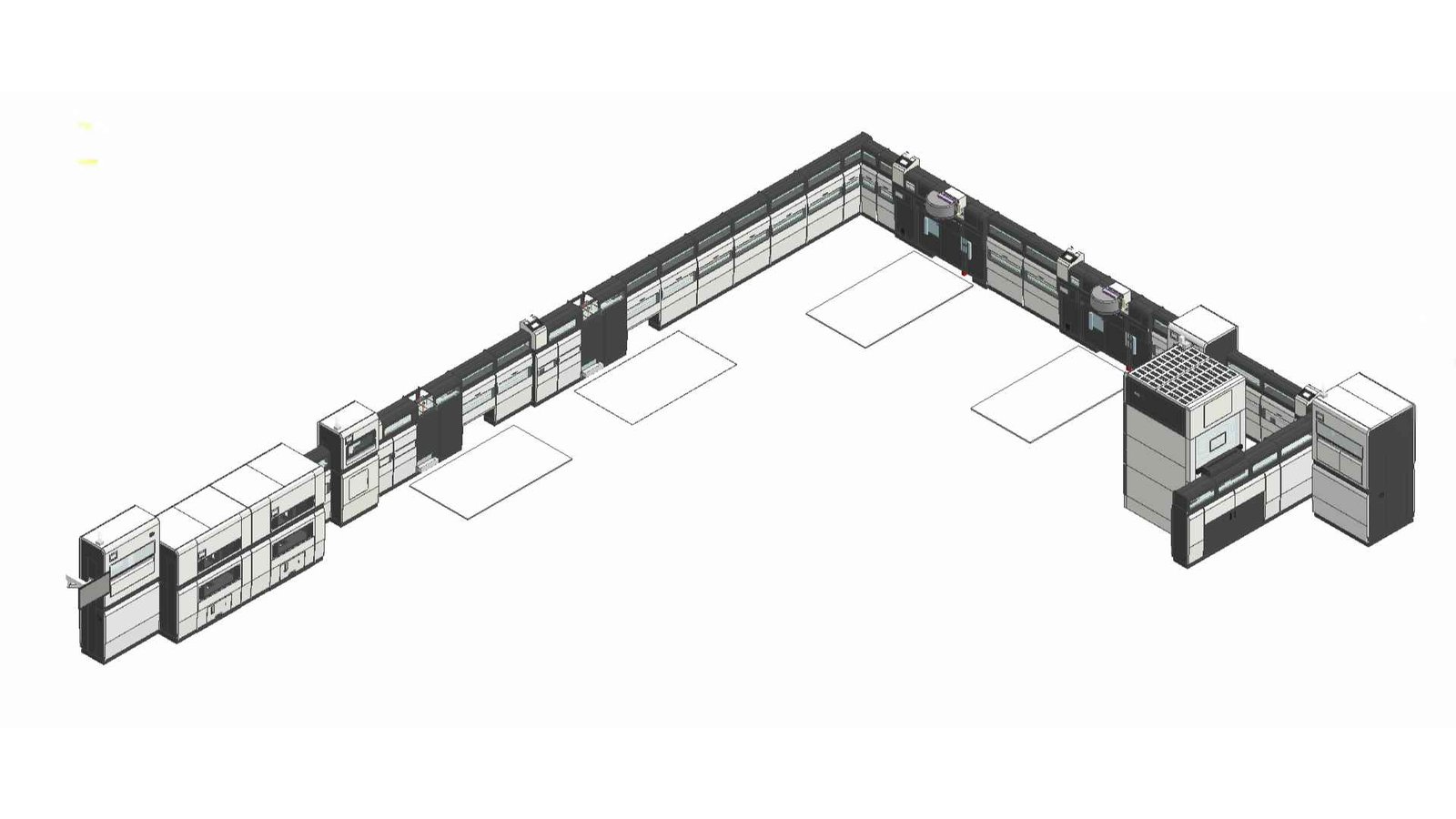

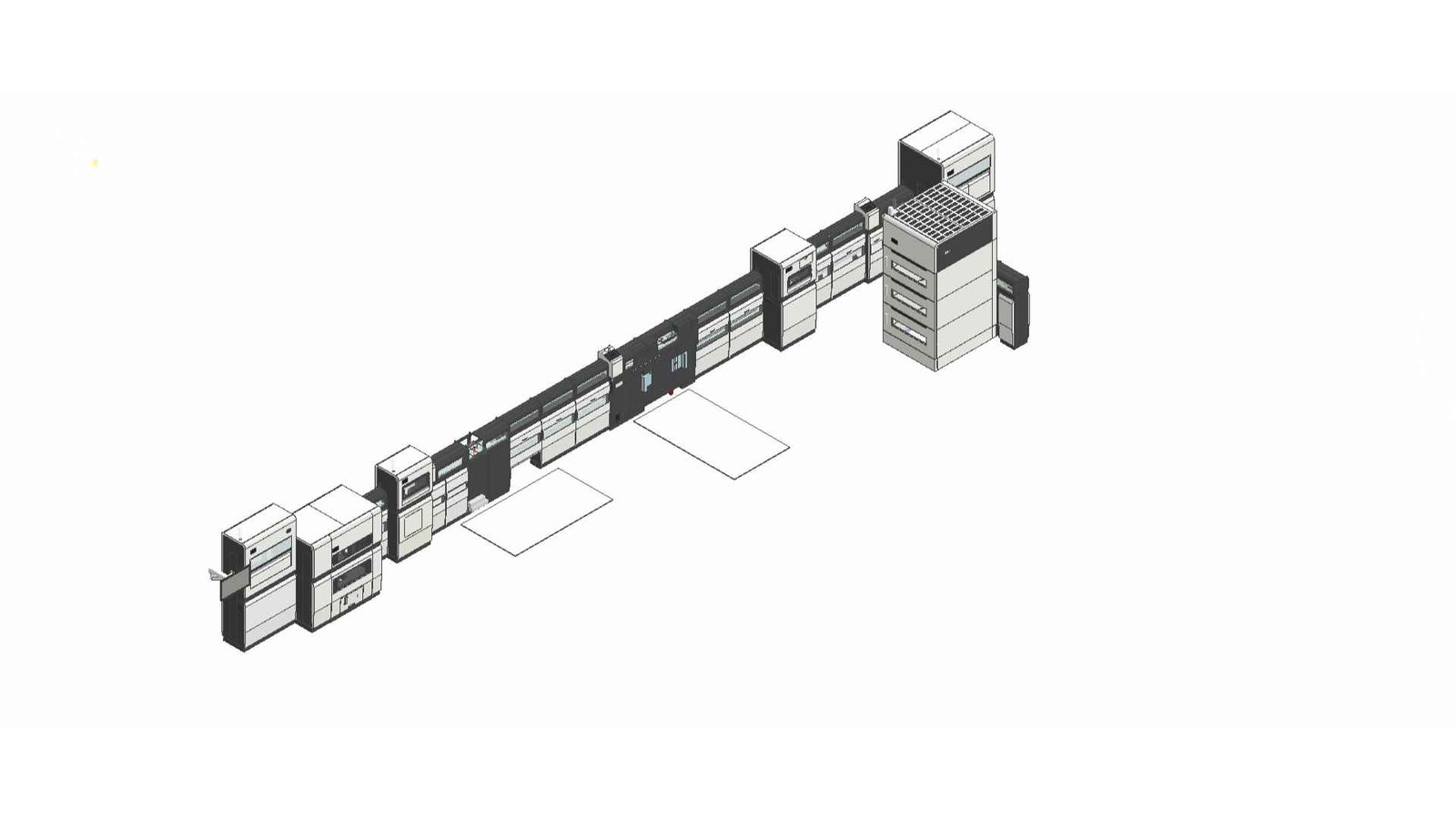

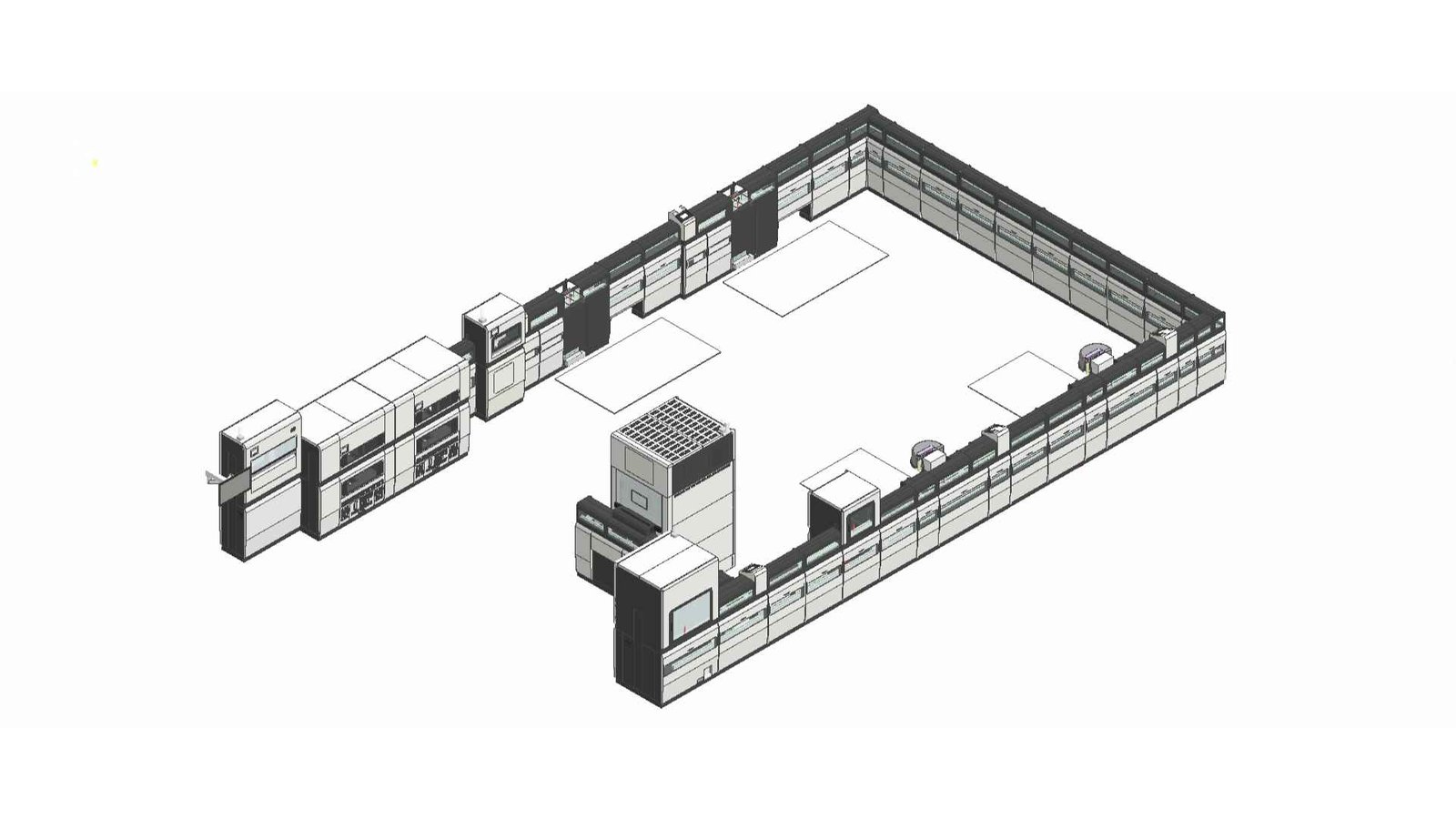

*The configurations shown above are examples and can be fully customized to suit your laboratory’s workflow.
Reach out to our sales representative by clicking on the “Request for More Info” button below to explore tailored solutions for your laboratory.
Open Automation
Solution
IDS track-based automation systems are designed for open connectivity and have been successfully integrated with over 100 analyzers across 40+ leading IVD manufacturers.
Analyzer Connection Types :
Rack-based transfer
Tube-based transfer
Outboard Sampling
Custom connections
Multi-disciplinary
Our systems support multi-disciplinary testing environments as seen below.
Chemistry
Immunoassay
Coagulation
Urine Analysis
Hematology
Molecular
Key Features
Open Connectivity
Integrates across multiple IVD disciplines and analyzers.
Flexible Design
Adapt to any laboratory layout or operational flow.
Scalable Modules
Grow your automation system as your lab’s needs evolve.
Future-Proof System
Designed with upgrade paths and continuous innovation in mind.
