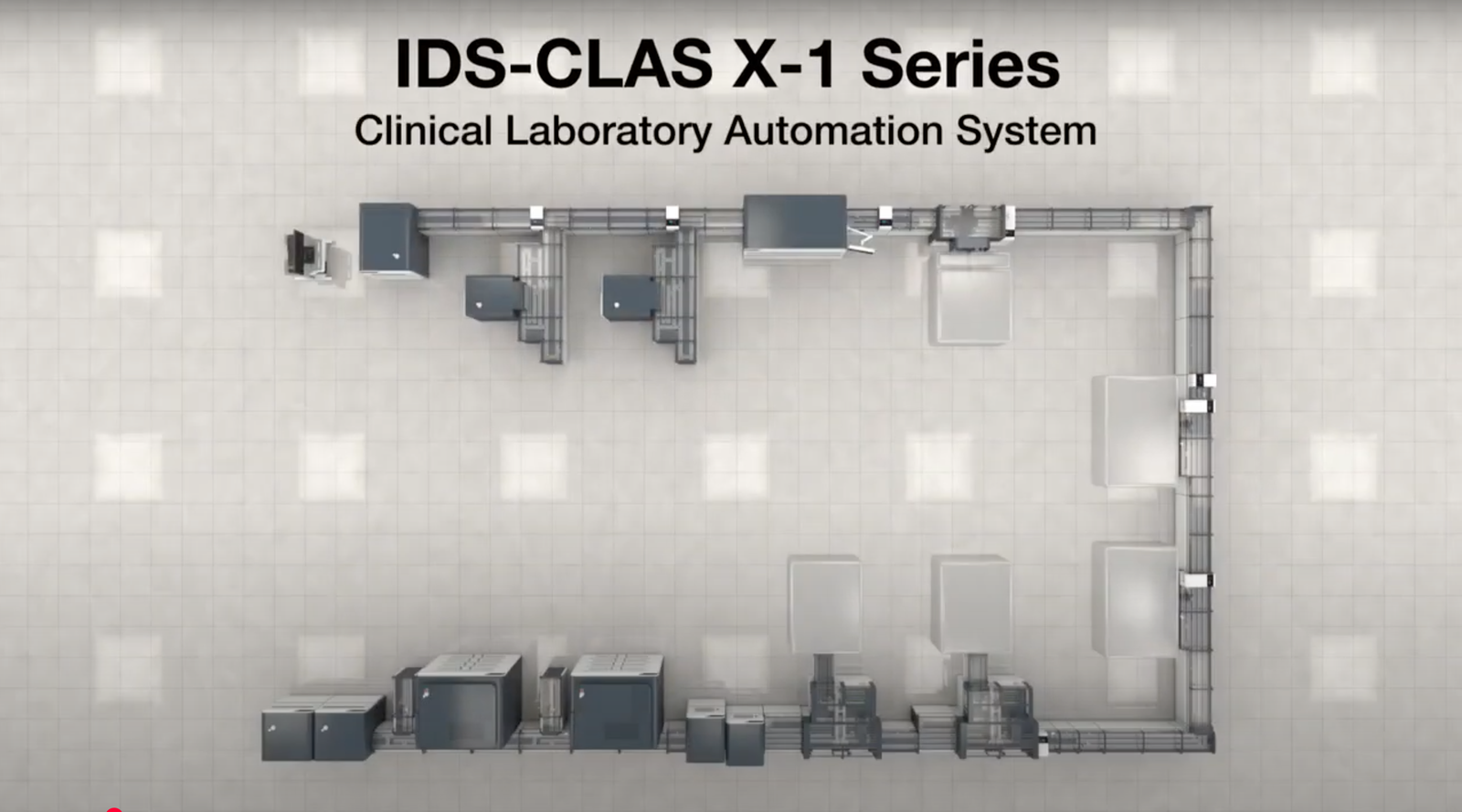

IDS-CLAS X-1
Modern core laboratories often experience operational variability during peak hours, STAT surges, and unpredictable sample congestion.
The IDS-CLAS X-1 is engineered to restore workflow stability through continuous sample transport, intelligent sample prioritization, and real-time traceability.
Built on our belt-less magnetic transport technology, the system delivers predictable, non-stop sample movement even during peak workloads.
Since its introduction in 2016, the X-1 platform has evolved through extensive customization of processing modules, analyzer connections, and workflow configurations across diverse laboratory environments.
Today, the IDS-CLAS X-1 stands as a proven mid-volume Total Laboratory Automation (TLA) solution designed to stabilize workflow, reduce bottlenecks, and scale with future laboratory needs.
1. Beltless Transport
2. Stable Peak Flow
Ensures predictable sample transport even during STAT surges and peak-hour laboratory workloads.
3. Original X-1 Developer
4. Continuous Development
Inlet Module
For Faster & Smarter Sample Loading & Routing
The Inlet is responsible for receiving and loading samples onto the track system while confirming incoming sample receipt and information through barcode scanning.
Introduce STAT samples as needed without interrupting inlet operation.
Loading Capacity: 400 Samples (8 x IDS 50-tube racks

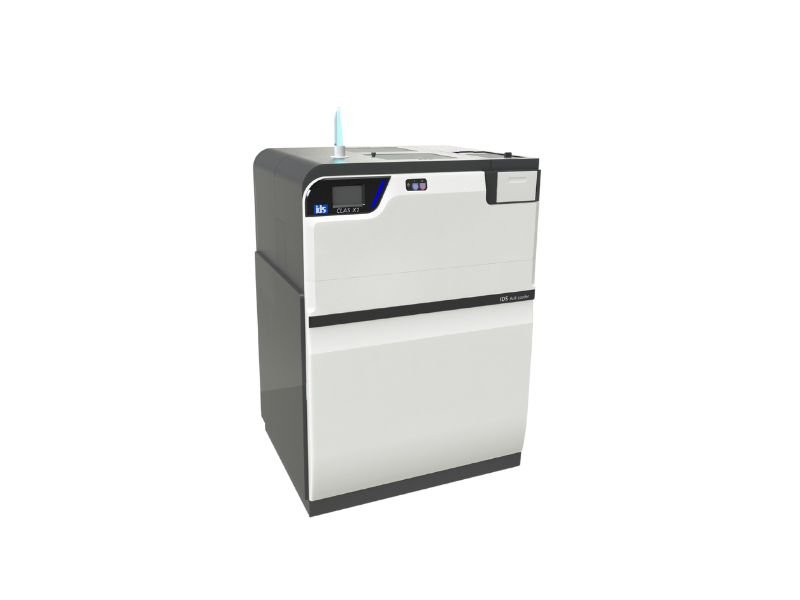

Bulk Loader
Designed to handle high volumes of incoming samples, the bulk loader accommodates samples to be loaded or poured through the opening as needed. The sample barcode is scanned to determine routing and confirm receipt in the laboratory LIS.
- Throughput : up to 600 samples/hours
- Track supports redundant modules
Centrifuge Module
Fast load and unload up to 40 samples per spin cycle with an auto-balancing feature to manage short turnaround time and removes centrifugation batching delays.
- The track supports redundant modules to manage increased sample volume.
- Available in ambient or refrigerated models
Decapper Module
Caps of sample tubes are removed by a rotational mechanism, which gets directly discarded into the internal bio-hazard container.
- Rubber stopper
- Plastic stoppers
- Twist/screw caps
Minimizing aerosol exposure and ensuring lab biosafety.
- Track supports redundant modules
Aliquoting System
- De-caps centrifuged primary tube and prepares secondary aliquot tubes based on test orders.
Alerts operators right away if samples are short of blood volume upon receipt. - Processes to up to 4 different primary tube type
- Samples can be sorted out into personality racks within this connecting module
- Error samples can be routed to inlet/outlet module
For more info, View our Peri-analytical Workstation solutions
Inlet/Outlet Module
The 8-rack inlet/outlet module has a walkaway time of 400 samples. Each rack holds up to 50 sample tubes.
Removes samples from Automation Line and load them into outlet rack for operators to manually proceed with "completed", "in-progress", and "error" samples.
The rack sorting configuration can be customized to allow laboratories organize samples based on specific their projects or operational needs
Analyzer Connections
Rack or Tube-builder Connections
IDS can develop appropriate automated transfer arms designed to unload samples from sample tube carriers and place them into your laboratory analyzer racks.
Recapper Module
Samples that requires to be stored or for archive storage, the tubes are re-capped securely using clean IDS Proprietary (plastic) caps
Walkaway capacity: 600 caps
3K or 5K Storage Module
Stores up to 3060 sample tubes (9x 340-tube storage rack) and 5440 sample tubes respectively (16x 340-tube storage rack)
Samples are unloaded from carriers that are on the transport lane one at a time and systematically placed into storage racks.
• Samples can be automatically retrieved for re-runs and add-ons
Optional automated sample disposal available

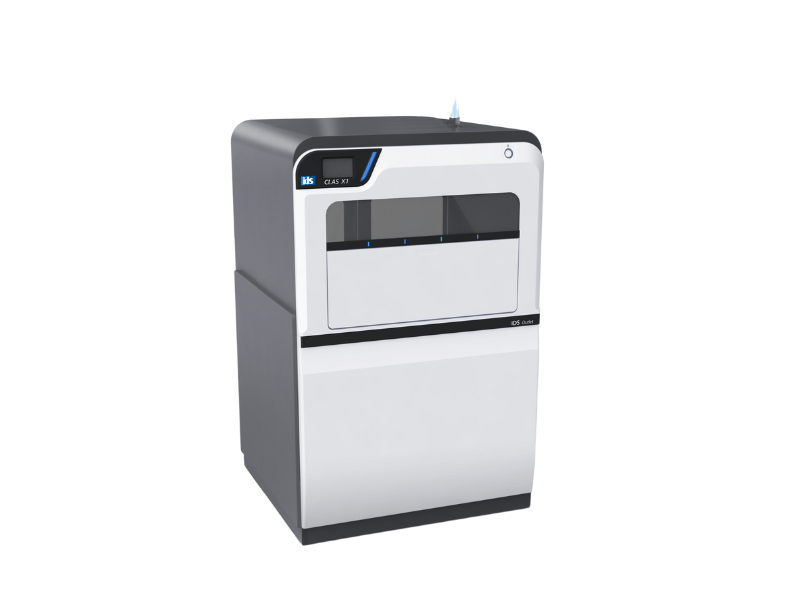

Outlet Module
The 8-rack outlet module has a walkaway time of 400 samples. Each rack holds up to 50 sample tubes.
Removes samples from Automation Line and load them into outlet rack for operators to manually proceed with "completed", "in-progress", and "error" samples.
The rack sorting configuration can be customized to allow laboratories organize samples based on specific their projects or operational needs.
Outlet Module
The 8-rack outlet module has a walkaway time of 400 samples. Each rack holds up to 50 sample tubes.
Removes samples from Automation Line and load them into outlet rack for operators to manually proceed with "completed", "in-progress", and "error" samples.
The rack sorting configuration can be customized to allow laboratories organize samples based on specific their projects or operational needs.

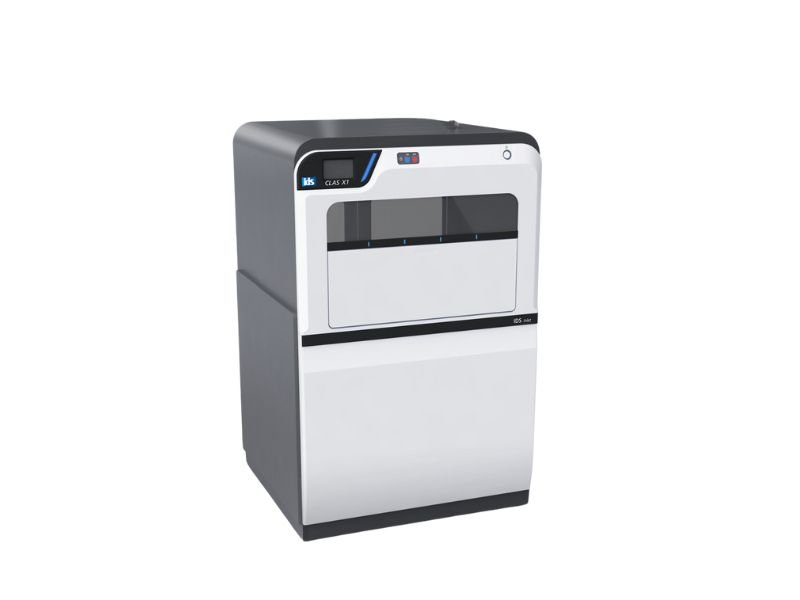

Inlet
For Faster & Smarter Sample Loading & Routing
The Inlet is responsible for receiving and loading samples onto the track system while confirming incoming sample receipt and information through barcode scanning.
Introduce STAT samples as needed without interrupting inlet operation.
Loading Capacity: 400 Samples (8 x IDS 50-tube racks
Bulk Loader
Designed to handle high volumes of incoming samples. Sample barcode is scanned to determine routing and confirm receipt in the laboratory LIS.
- Throughput : up to 600 samples/hours
- Track supports redundant modules
- Continuous loading capacity with up to 800 tubes at once.

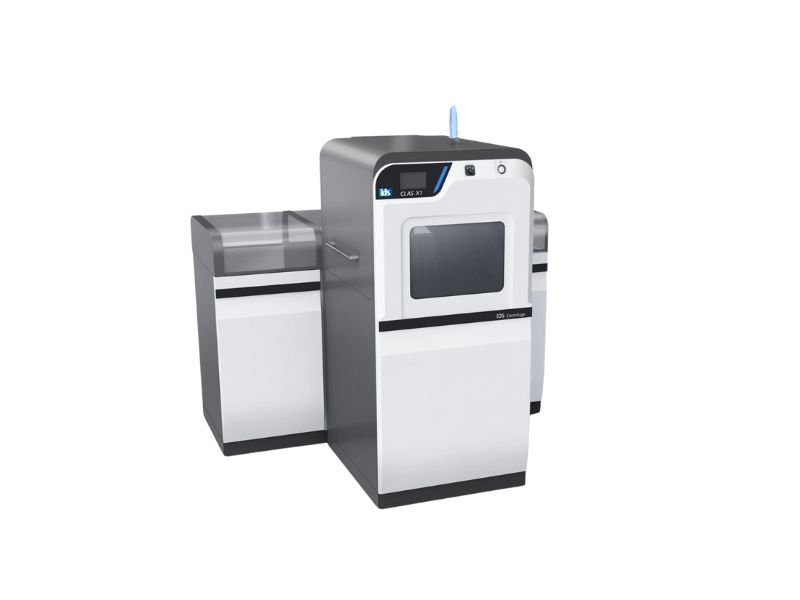

Centrifuge
Fast load and unload up to 40 samples per spin cycle with an auto-balancing feature to manage short turnaround time and removes centrifugation batching delays.
- The track supports redundant modules (up to 4) to manage increased sample volume.
- Available in ambient or refrigerated models

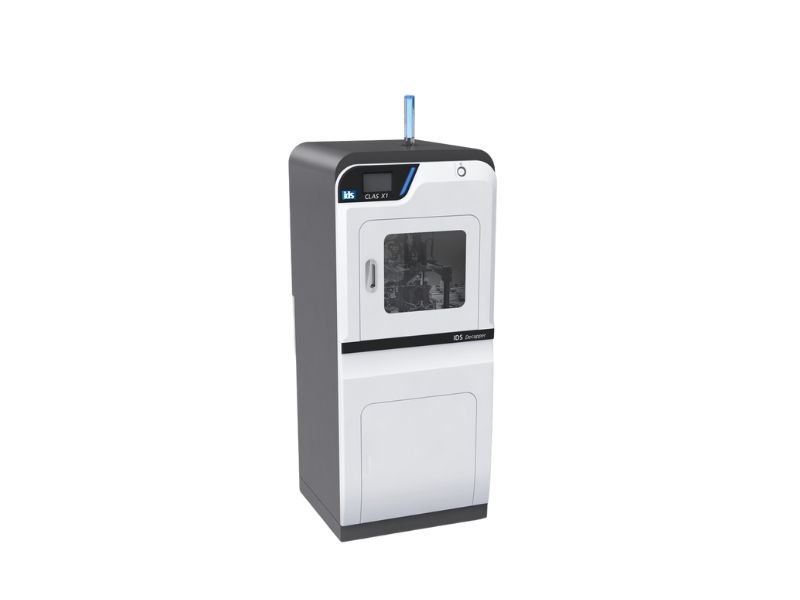

Decapper
Caps of sample tubes are removed by a rotational mechanism, which gets directly discarded into the internal bio-hazard bin.
- Rubber stopper
- Plastic stoppers
- Twist/screw caps
Minimizing aerosol exposure and ensuring lab biosafety. Track supports redundant modules
Aliquot System: IDS-CLAS 2800
- De-caps primary tube.
- Prepares up to 4 different secondary tube types at same time.
- Prints bar-code label for secondary tubes traceable to primary tube.
- Aliquots primary samples to up to 4 or 15 secondary aliquot tubes respectively.
- Alerts operators right away if samples are short of blood volume upon receipt.
- Samples sorted out into personality racks.

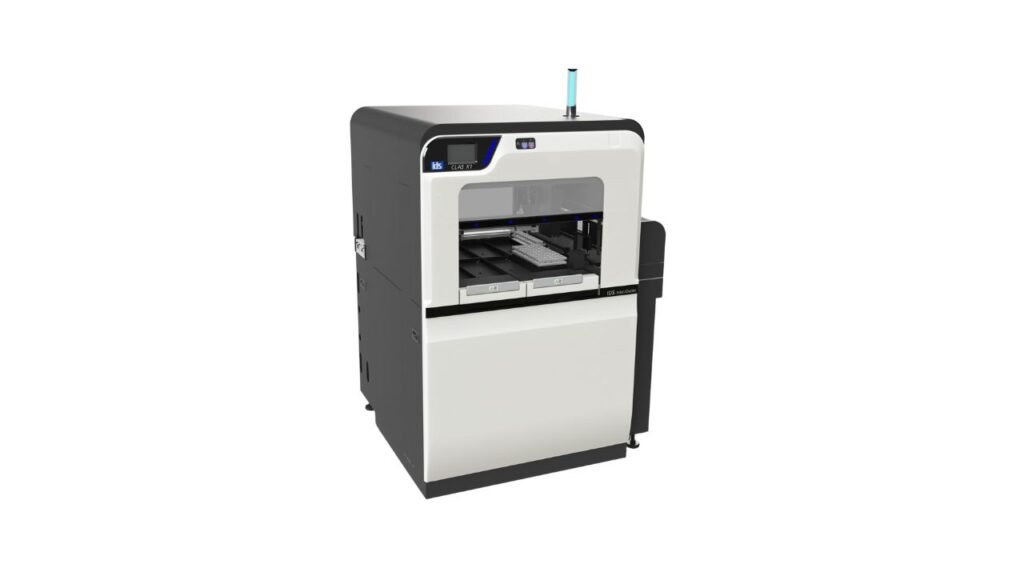

Inlet/Outlet Module
The module functions as both an inlet and outlet, allowing operators to introduce samples into the system and remove processed samples from the automation track into outlet racks.
Rack sorting can be configured based on laboratory workflow requirements. The outlet can also operate as an inlet, enabling sample retrieval for additional testing, repeat analysis, or re-runs.
- The track supports redundant modules
- 8-Rack outlet with a walkaway time of 400 samples (8 x IDS 50-tube racks).
Rack Builder Connection
Direct Sampling Connection
Analyzer Connections
IDS-CLAS X-1 support analyzer connections on both sides of the track system, significantly reducing sample travel time to analyzers.
IDS is able to manufacture custom analyzer connections that fits and facilitates efficient sample transfer depending on your laboratory analyzers type/make.
- Rack or Tube-builder Connections
- Point-in-Space (Direct Track Sampling) Connections

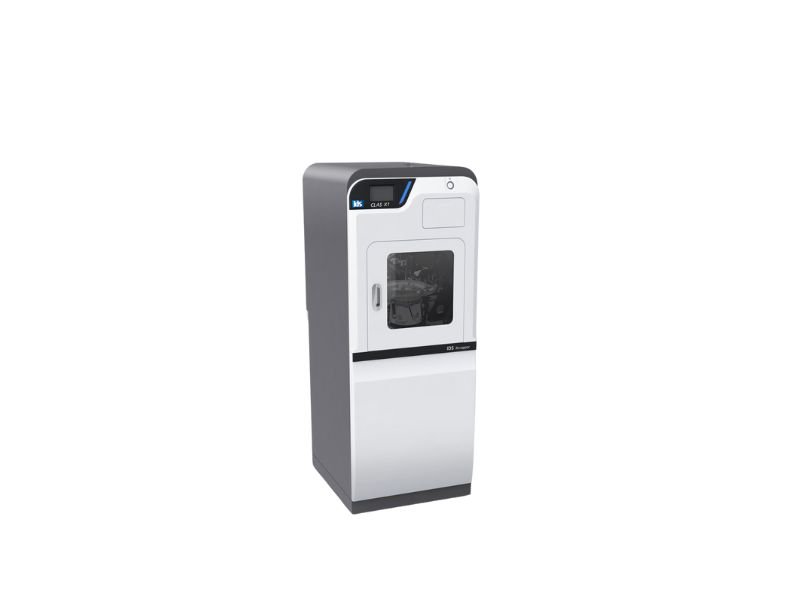

Recapper
- Walkaway capacity: 600 caps

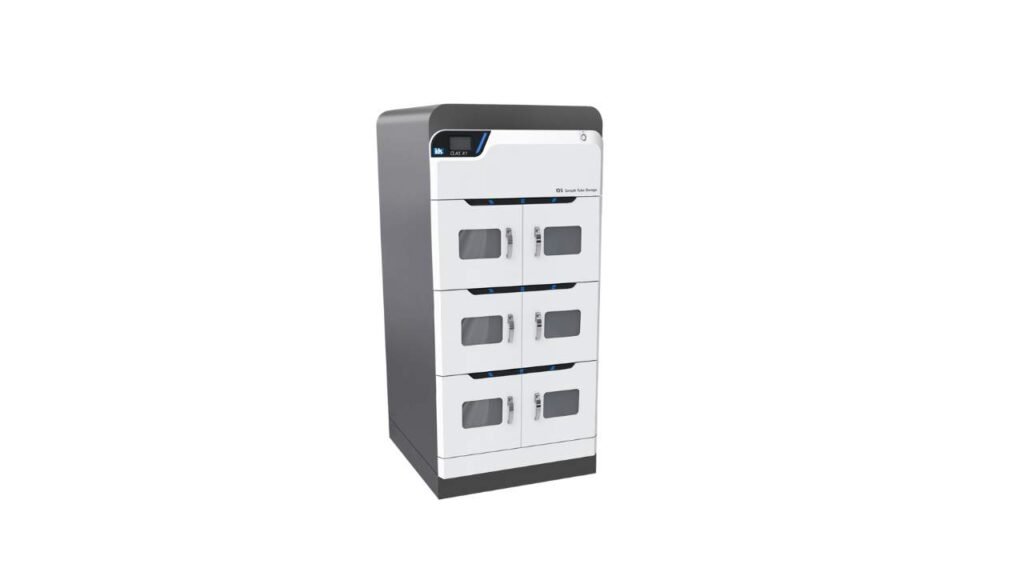

3K Storage

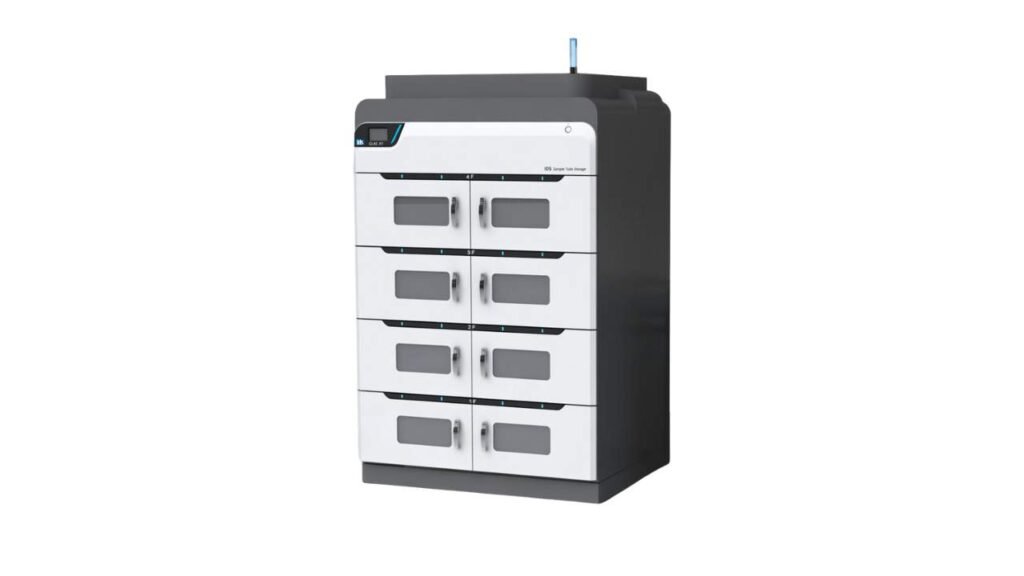

5K Storage
Sample Storage
Stores up to 3060 sample tubes (9x 340-tube storage rack) and 5440 sample tubes respectively (16x 340-tube storage rack)
Samples are unloaded from carriers that are on the transport lane one at a time and systematically placed into storage racks.
- Samples can be automatically retrieved for re-runs and add-ons
- Optional robotic arm for automated sample disposal available
Outlet
The 8-rack outlet module has a walkaway time of 400 samples. Each rack holds up to 50 sample tubes.
Removes samples from Automation Line and load them into outlet rack for operators to manually proceed with “completed”, “in-progress”, and “error” samples.
The rack sorting configuration can be customized to allow laboratories organize samples based on specific their projects or operational needs.

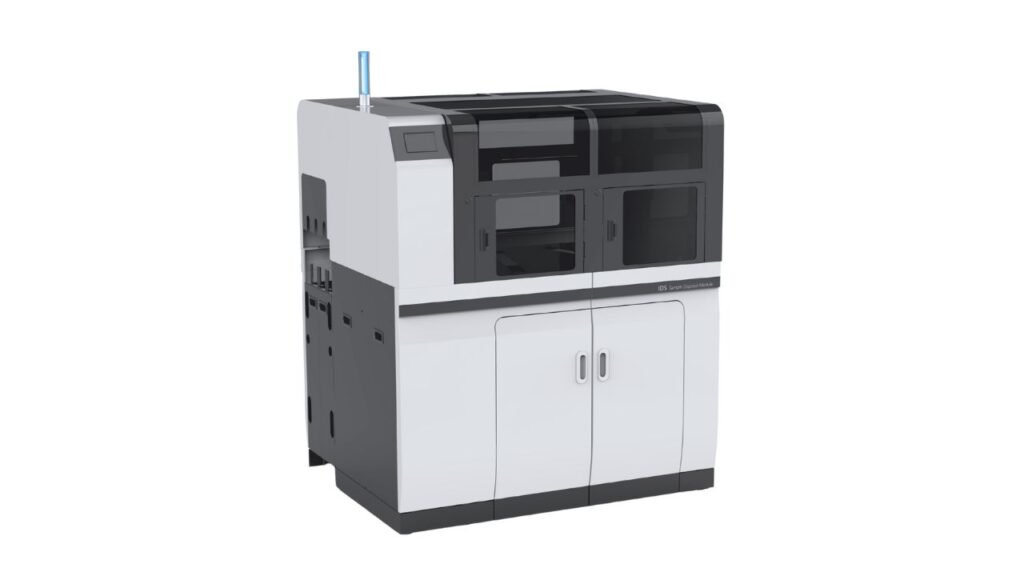

Sample Disposal
The sample disposal unit automates safe and traceable disposal of completed blood samples and urine aliquot tubes.
Through barcode verification, it confirms disposal authorization and directs capped tubes into secure clinical waste containers.
The module is designed to comply with strict biohazard and safety regulations. Minimizing manual handling, reducing exposure risk, and preventing disposal errors.
- Walkaway capacity: 1000 tubes
The images above are for illustrative purpose only. Actual product specifications and how it look may differ.

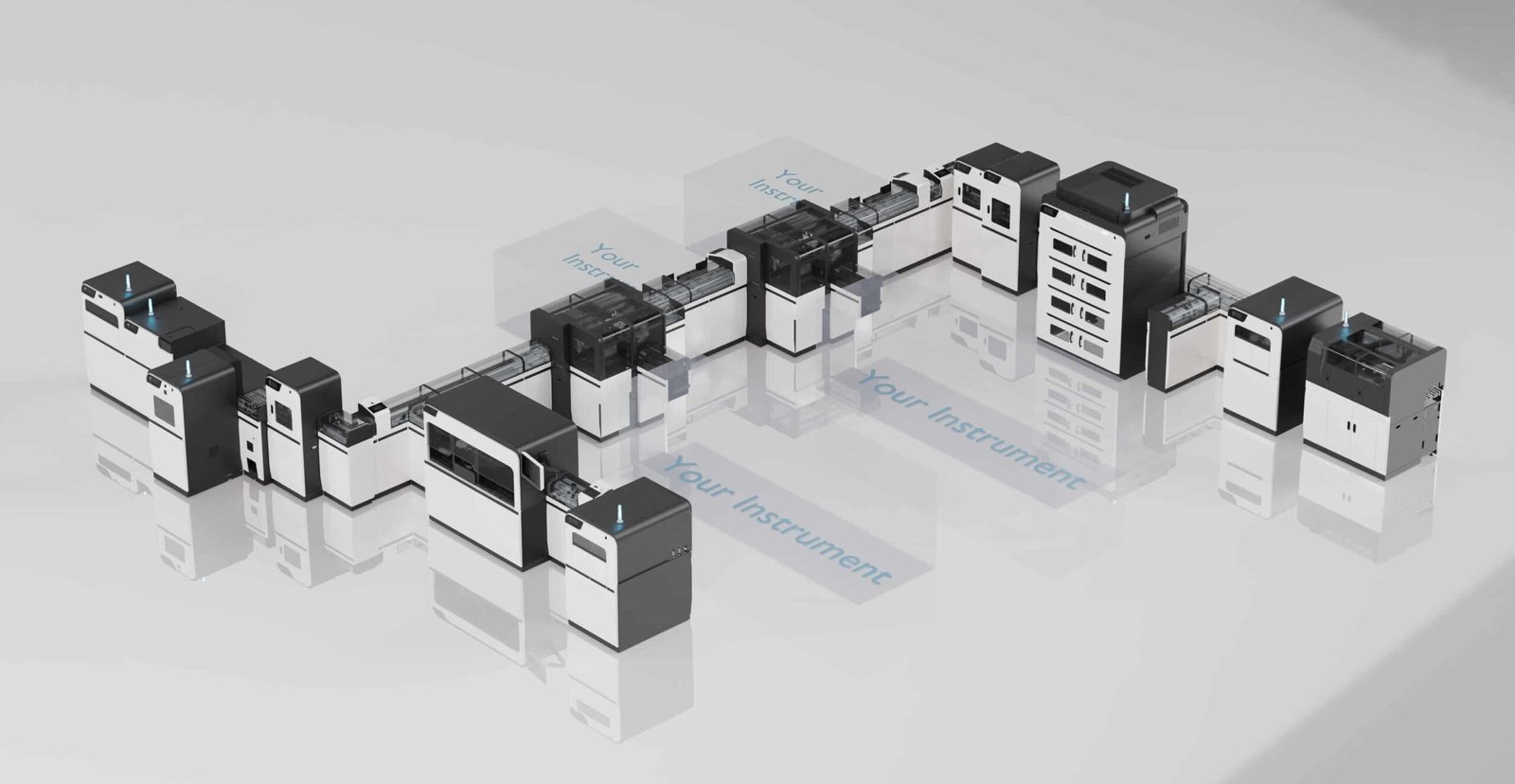

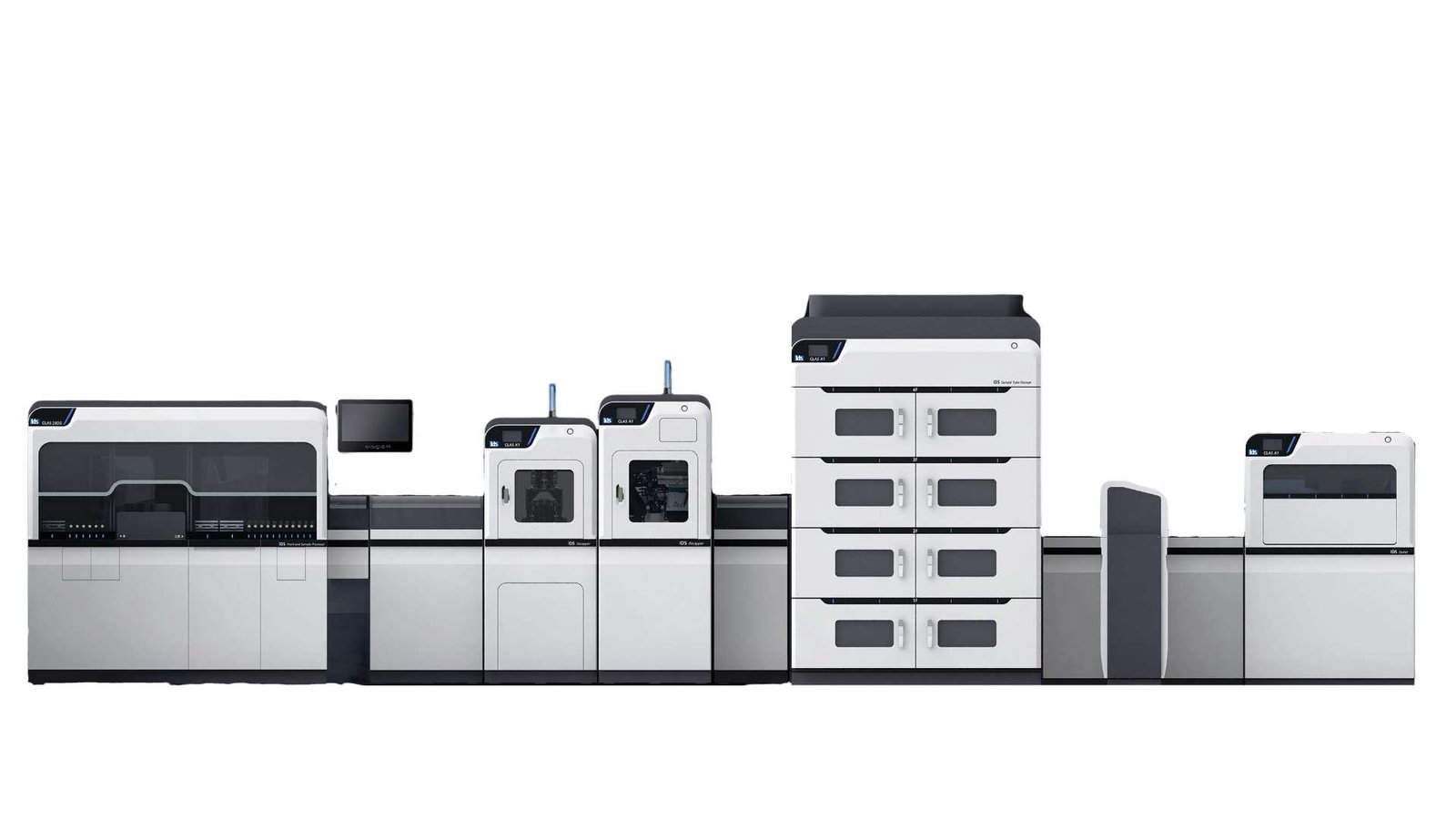

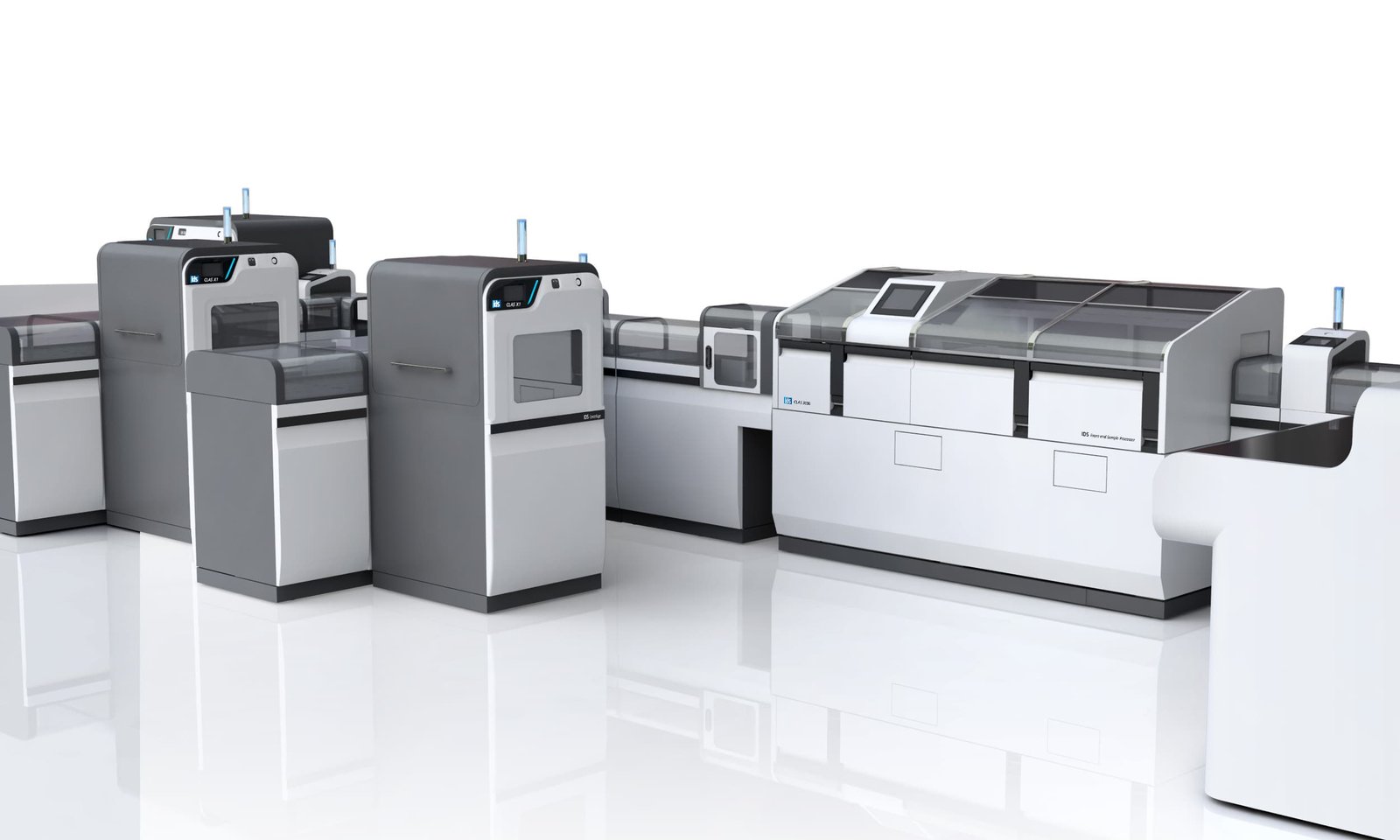

The TLA System includes but also is not limited to the following modules seen, which are all connected via IDS connection track.
Open Automation That Grows With Your Laboratory
We develop clinical laboratory automation that adapts to the operational needs and constraints of modern laboratories.
Built on decades of engineering and laboratory expertise, our systems are developed in close collaboration with laboratories and IVD partners to integrate seamlessly with evolving testing demands and hospital workflows. This user-centric approach supports operational efficiency, optimized turnaround times (TAT), and dependable patient care.
IDS designs and manufactures both standard and fully customized modular track systems, standing behind every installation for the long term.

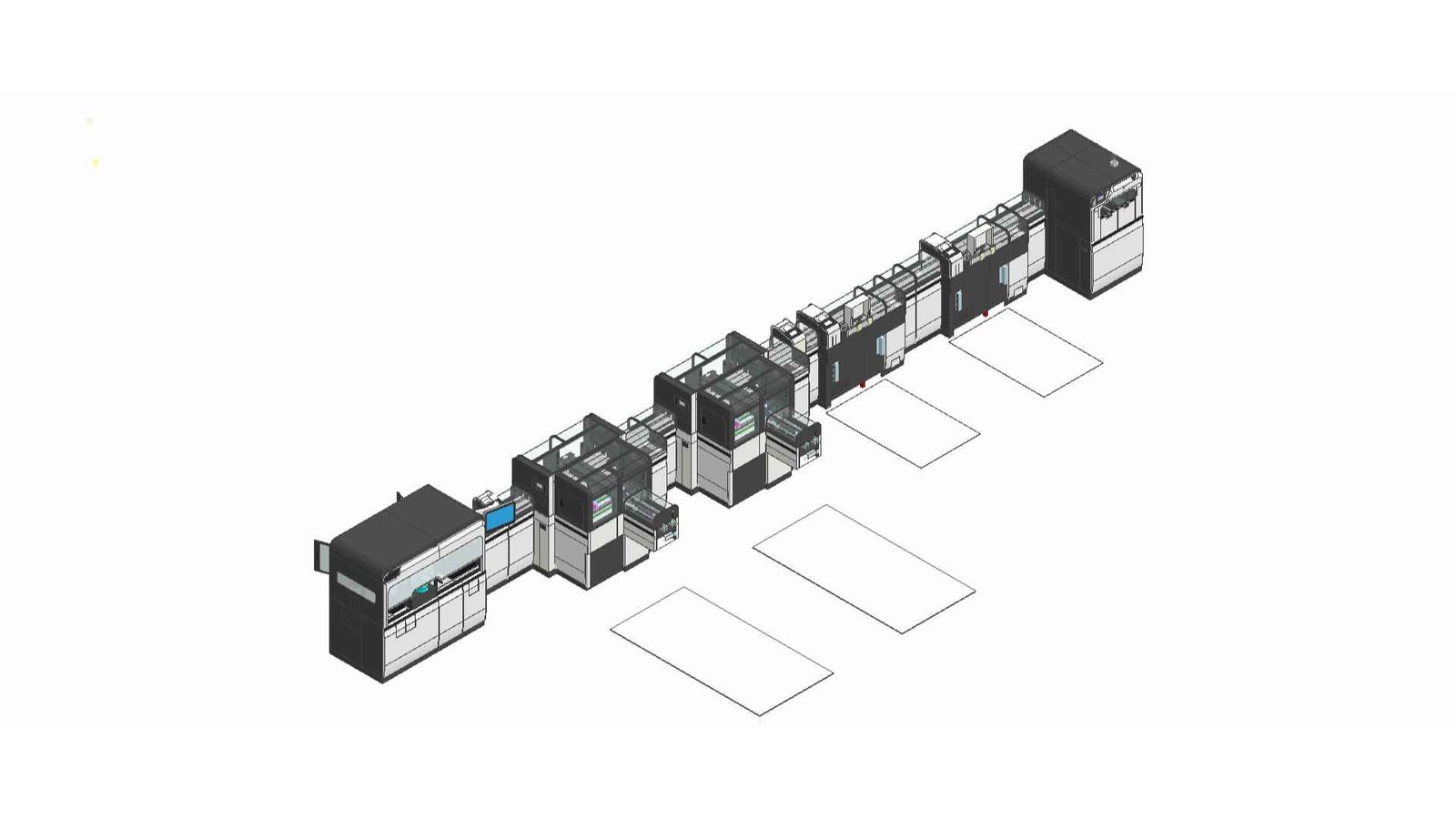

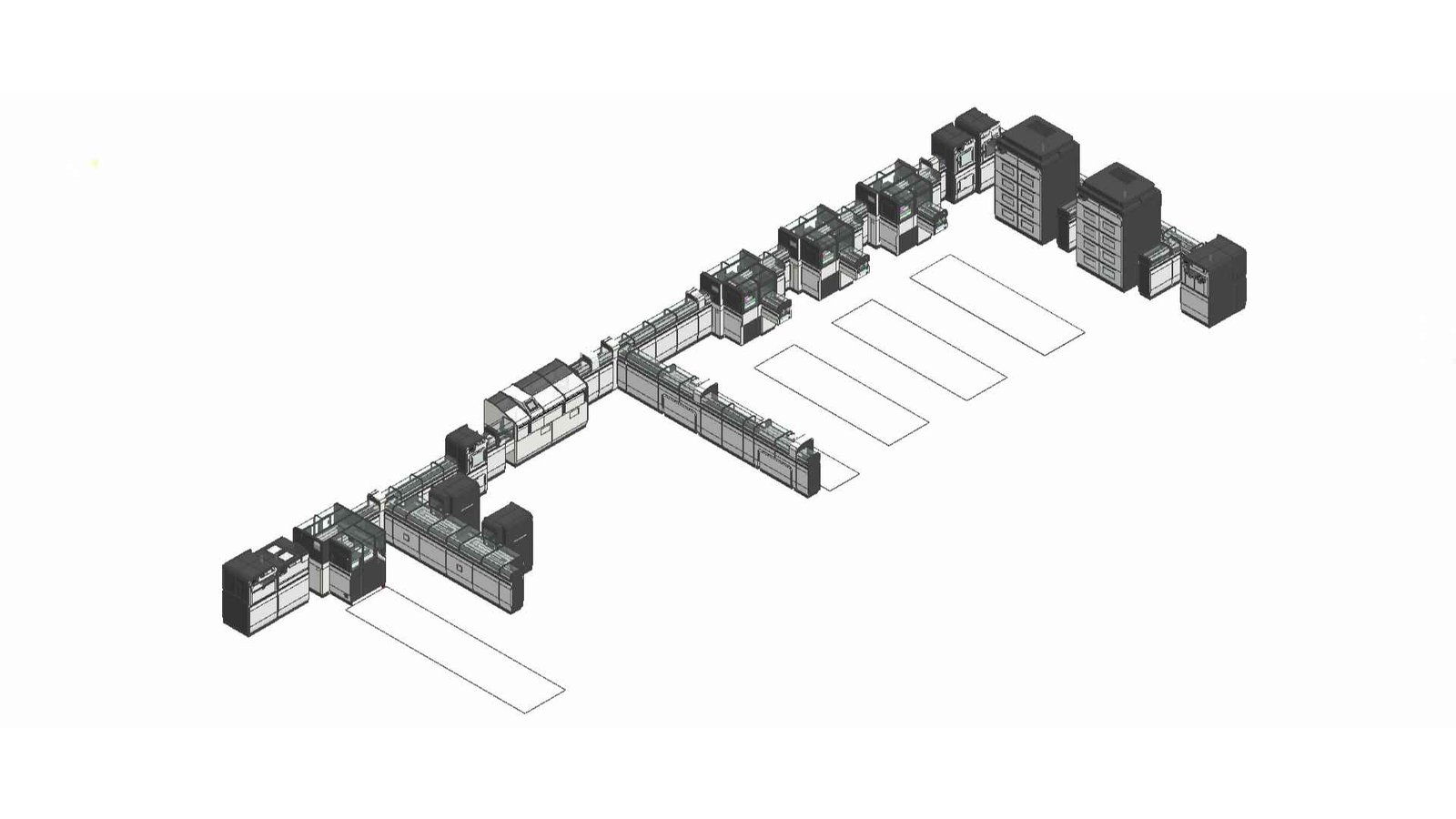

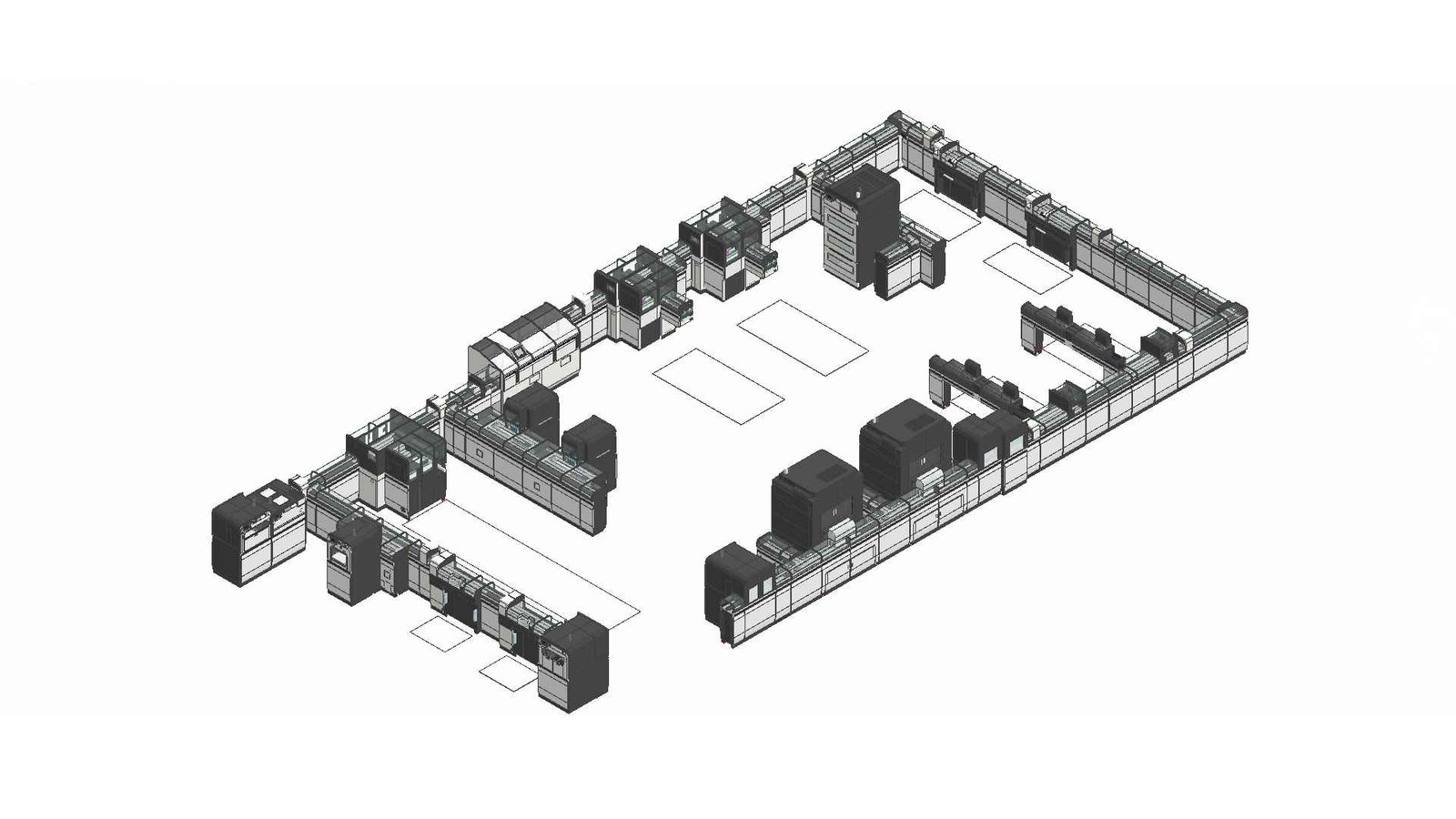

*The configurations shown above are examples and can be fully customized to suit your laboratory’s specific needs.
Reach out to our sales representative by clicking on the “Request for More Info” button to explore tailored solutions for your laboratory.
Open Automation
Solution
IDS track-based automation systems are designed for open connectivity and have been successfully integrated with over 100 analyzers across 40+ leading IVD manufacturers.
Analyzer Connection Types :
Rack-based transfer
Tube-based transfer
Outboard Sampling
Custom connections
Multi-disciplinary
Our systems support multi-disciplinary testing environments as seen below.
Chemistry
Immunoassay
Coagulation
Urine Analysis
Hematology
Molecular
Key Features
Open Connectivity
Integrates across multiple IVD disciplines and analyzers.
Flexible Design
Adapt to any laboratory layout or operational flow.
Scalable Modules
Grow your automation system as your lab’s needs evolve.
Future-Proof System
Designed with upgrade paths and continuous innovation in mind.
